Centeralized Digital Toolkit
Overview
This toolkit application designed to communicate to all the installations in the experience center.
It connects to either the centeralized server of the experience center or can connect to individual installations based on dedicated IP addresses.
Presenter can change and configure content on-the-go by selection configuration in the admin mode. Once setup, the presenter can select the viewer mode and showcase the relevant content on the installations.
This toolkit is highly modulder and customizable, and can be configured for different experience centers./p>
Final Video:
Tata Communication Experience Center
Overview
Tata Communication Experience Center
Description: With a time span of 9 months, the complete project was planned, designed and executed in the busy city of Mumbai in India.
All the projects were categorized based on the sectors, and each installations were selected based on the best possible was to showcase the content.
The installations designed were interactive and data were fetched in real-time from the custom designed Content Management System (CMS) that was centrally deployed.
The content selection can be done prior to the customer visit. This was possible by selecting profiles using presenter tablet. These profiles were created and linked using CMS.
Final Site Video:
Pitch Video:
Kanakia Arcade Gaming Zone
Overview
A 1500 square meter arcade zone designed for kids. This zone consists of multiple installations designed for kids to play games and spend free time.
Proposed installations consists of Interactive Sketch Aquarium, Cycle Simulator, Interactive Table Tennis and Interactive Billiards.
In Interactive Sketch Aquarium, kids are given line art papers, and crayon colors. They color on their likings and then scan the paper. After completion, the custom application detects the QR code and selects modal based on the database. Once detected, the fish character appears based on their colors. Kids can interact with their characters by touching a large interactive wall. Initially for prototyping Kinect and IR touch overlay was used, which was later replaced by TUIO sensor because the length of the wall was 18 feet. This wall was multi touch, so multiple kids can interact with the game.
Interactive table tennis and billiards, are computer vision based smart tables where the custom high fps cameras are placed on the ceilings, and a projection is done on the flat surface of the table using projectors. The custom application created using game engine, detects the ball using blob detection technology, and also detects the touch of the user by understanding IR grid based layer on the table.

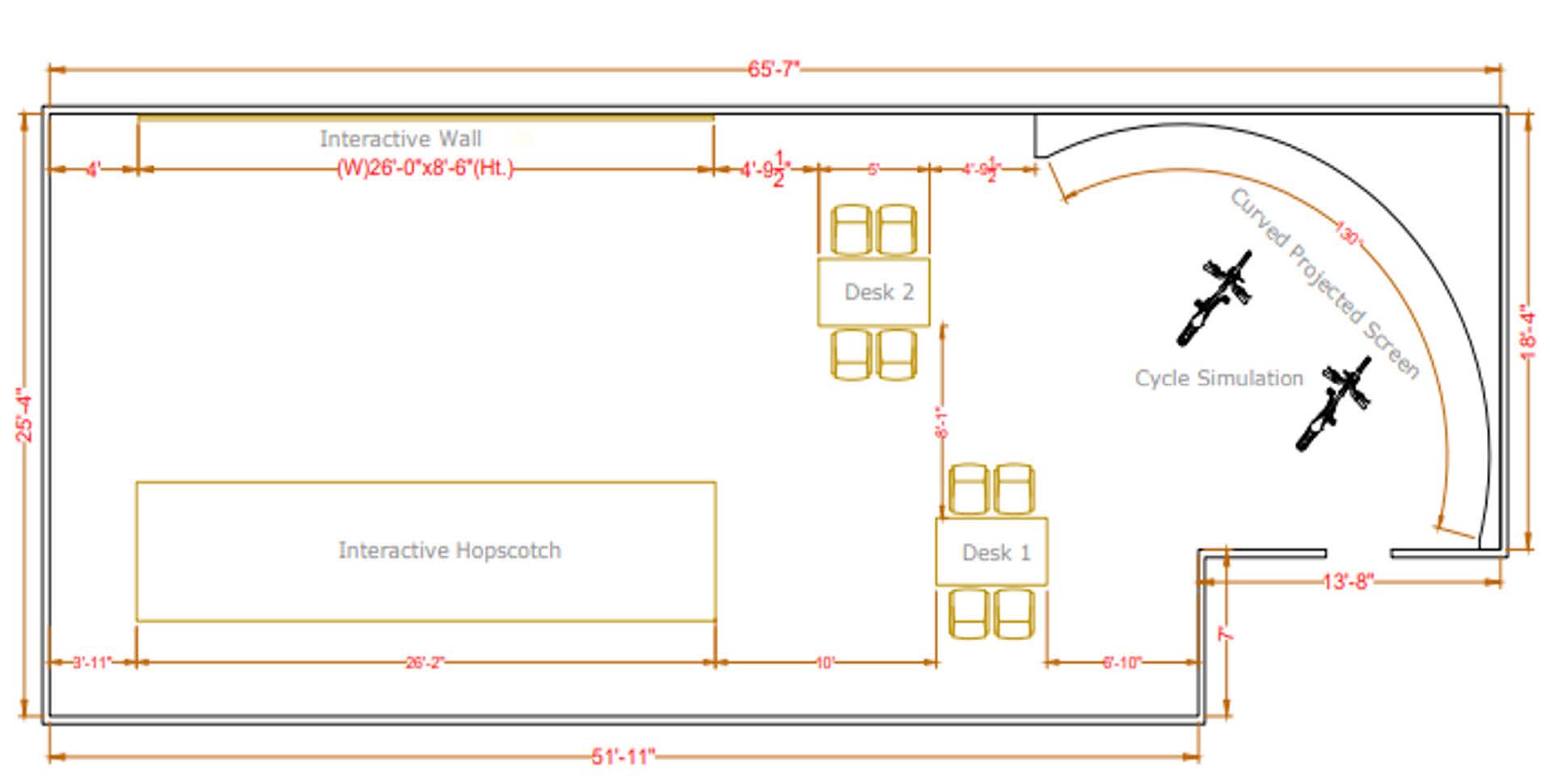

Site Layout
Final Videos:
Interactive Sketch Aquarium Video:
Interactive Table Tennis Video:
Interactive Billiards Video:
Prototype Videos:
Kinect based touch detection:
Application developed in Unity Game Engine:
User Testing Videos:
JSW - Museum of Solutions
Overview
Leveraging different technologies, the museum for kids was designed, that helped kids to understand the essance of water. This museum is one of it's kind in which, the theme of the museum changes every year like Water, Fire, Space, Air, etc. Currently the theme is water. The installations are designed in such a way that it can adapt any theme with minor changes in it. Multiple installations were proposed over the span of 3 years, and out of which most of them were selected by the clients. I was involved in the process of design research to ideations, prototyping to testing and finally execution on the site.
Final Site Videos
Copyright video - JSW MUSO
Individual installation videos:
Reliance Consortium
- Experience Center
Overview
This project was a complete pitch presentation to the client. It consists of a complete walkthrough of the futuristic site to showcase different process and products of the client. This was done using different futuristic emerging technologies and space design.

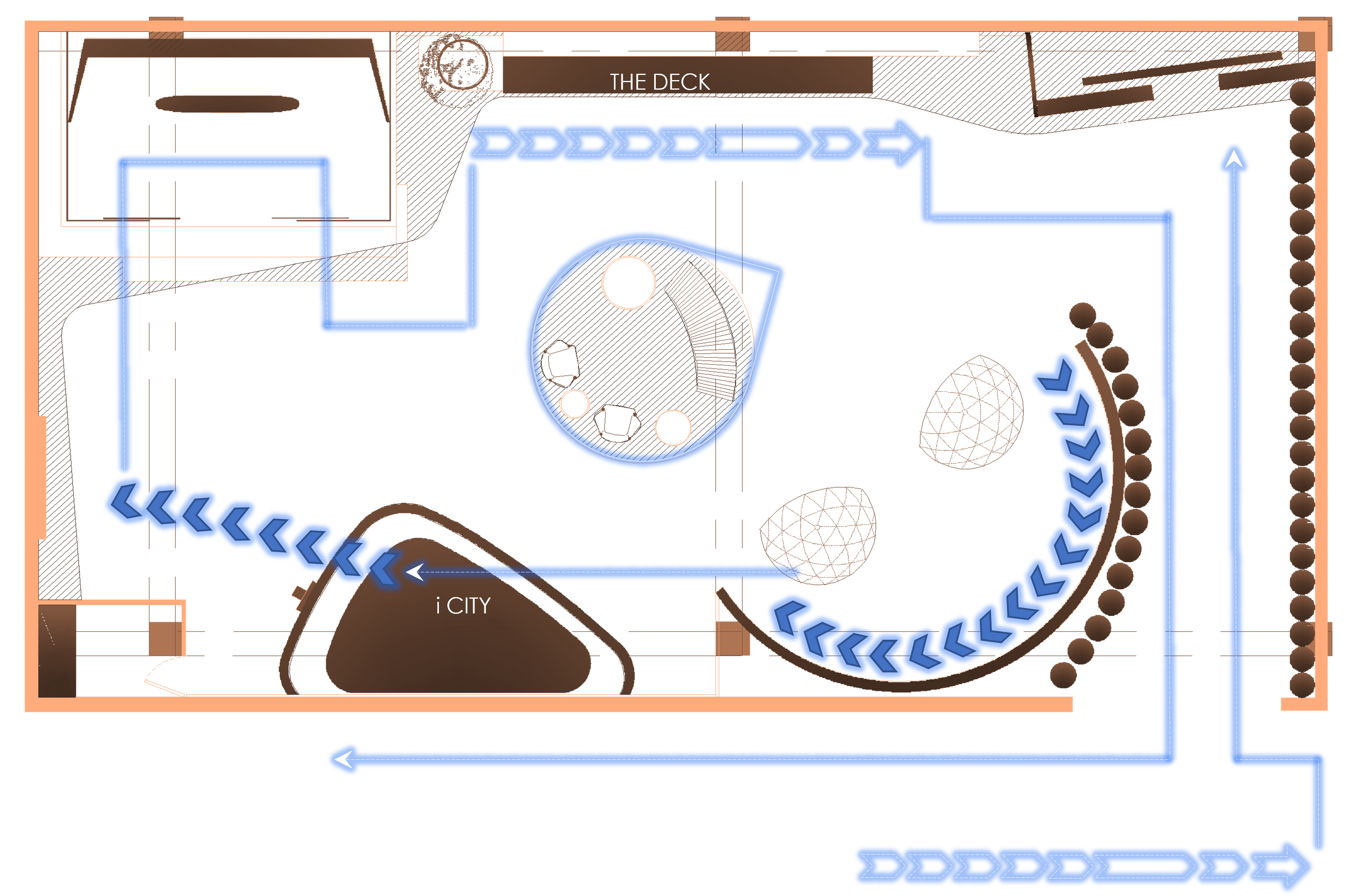

Site Layout:
Final Site Videos
Individual installation videos:

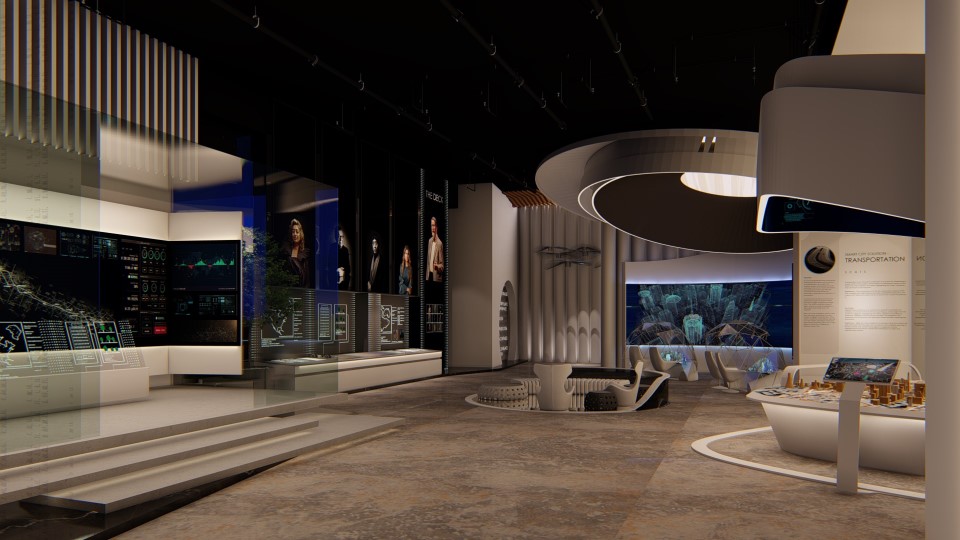

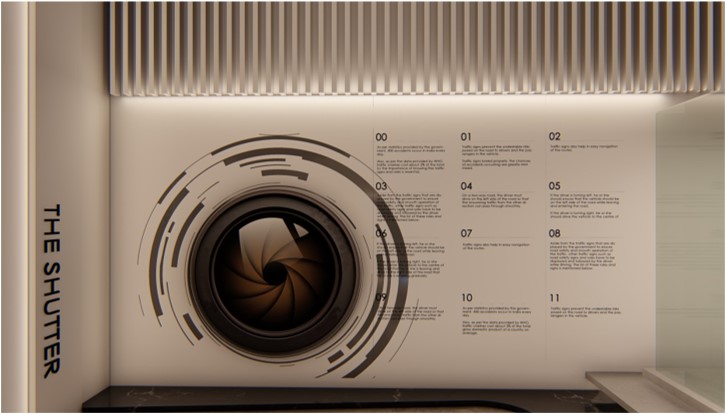

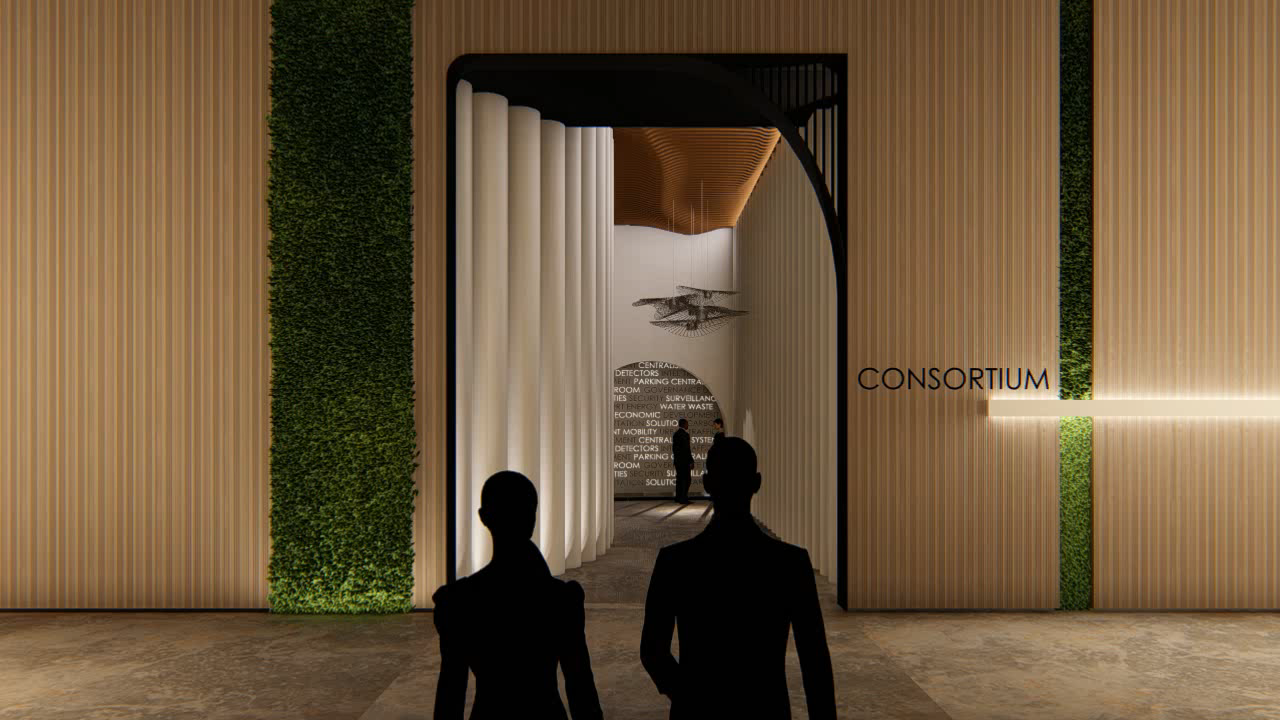

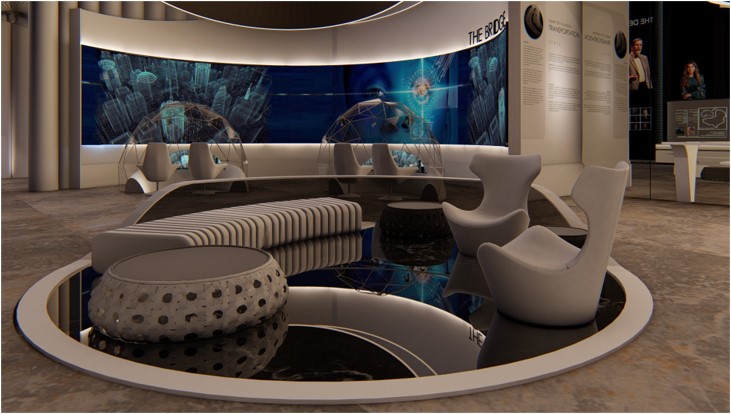

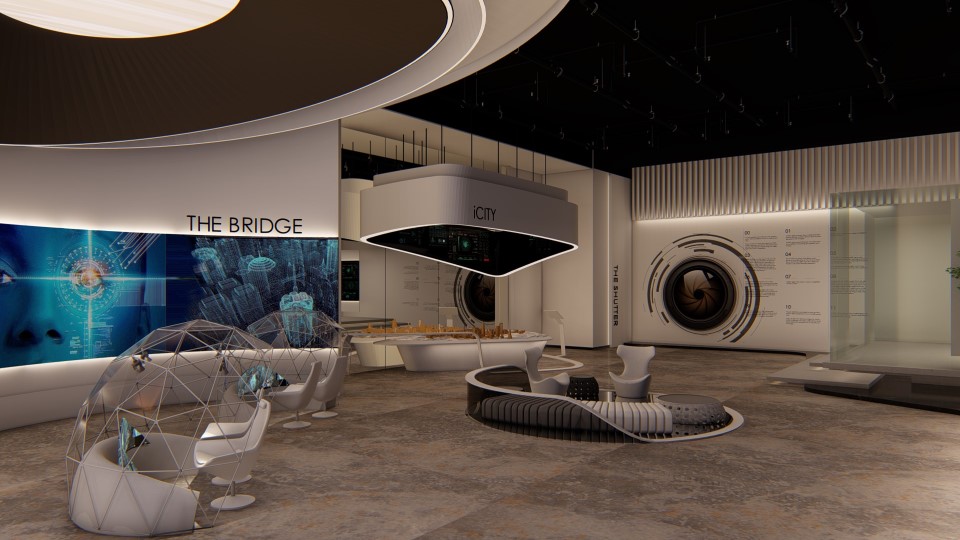

Installation Images:
